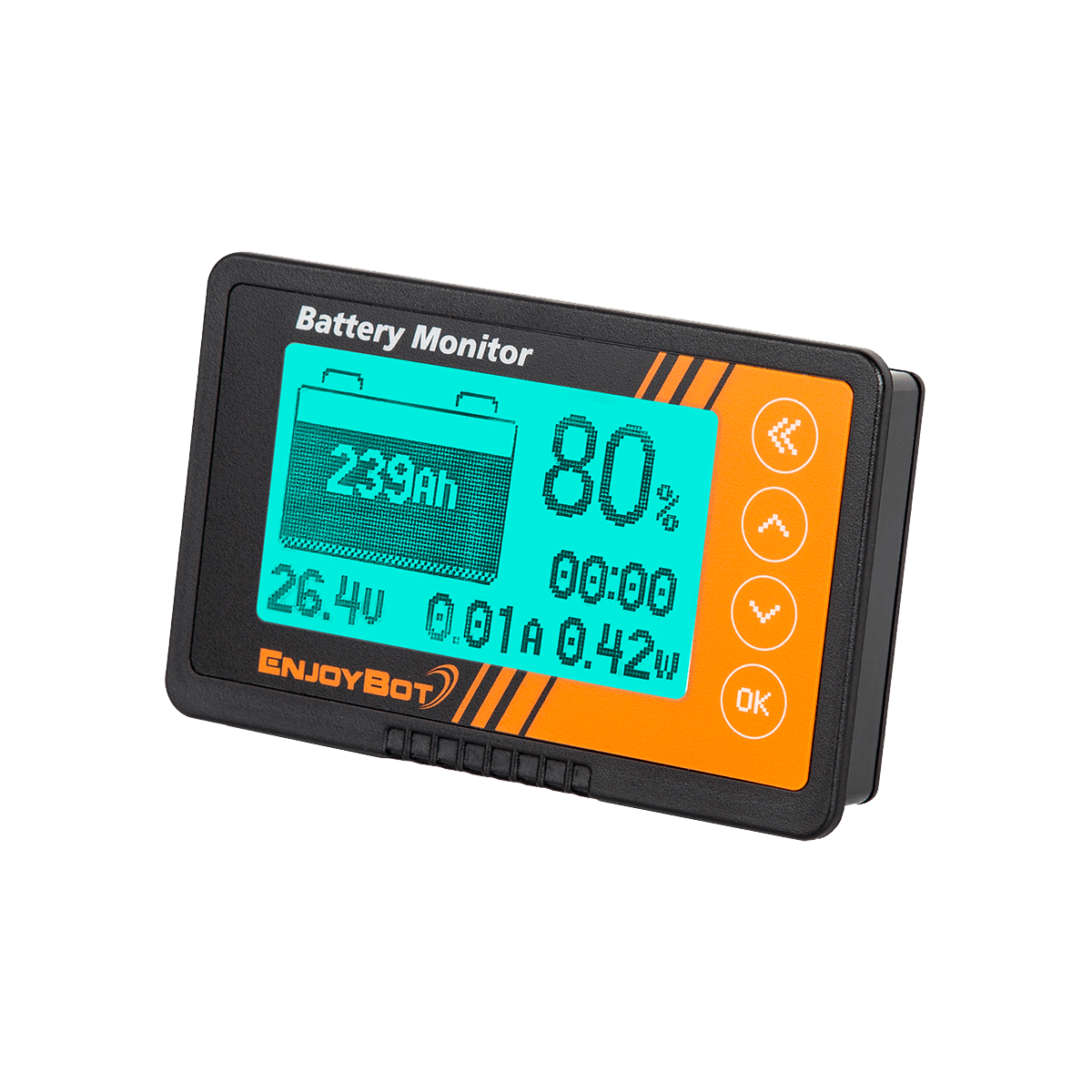

Enjoybot 500A Battery Monitor with Shunt
Available in stock
-
Estimated delivery: Jun 19 - Jun 23
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Description:
Do you sometimes struggle to accurately gauge your battery's remaining capacity? Enjoybot battery monitor offers a comprehensive solution to this common issue.
[Fit for All Battery] Suitable for 8-120V, 0-9999AH battery packs. Automatically identify different batteries, such as Li-ion, LiFePO4, Gel, AGM, etc.
[Accurate Data is Easy To Read] The display screen can accurately display the voltage, current, power consumption, battery capacity, battery decay rate and other parameters of the battery pack in real time, so you can accurately understand the working status of the battery at any time. Backlight design facilitates night use.
[Programmable Parameters and Buzzer Alarm] When the voltage/capacity is lower than the set value, the percentage and battery symbol on the LCD screen will flash, and the buzzer will alarm every 10 seconds. To protect the battery from over-discharge.
[Easy To Install] The transparent shunt bracket makes it easier for the battery tester to install the shunt. 20 feet of shielded cable allows you to monitor battery status remotely.
[Versatile Use] It can be effectively applied to a range of products, including RVs, flatbeds, electric vehicles, emergency power supplies, energy storage power supplies, measuring equipment, medical equipment, and various instruments that rely on battery power.
Specification:
| Parameter | Min. | Regular | Max. |
| Working Voltage | 8V | 50V | 120V |
| Working Consumption | 8mA | 12mA | |
| Static Consumption | 1mA | 2mA | |
| Power off Consumption | 50 | μA | |
| Accuracy of Voltage Collecting | ±1% | ||
| Accuracy of Current Collecting | ±1% | ||
| Accuracy of Capacity Collecting | ±1% | ||
| Backlight on Current | 100mA | ||
| Capacity Detection Range | 0.1Ah | 100Ah | 9999Ah |
| Sampler Current | 0 | 350A | 500A |
| Temperature Range | -10°C | 20°C | 60°C |
| Weight | 420g | ||
| Size | 100*61*17mm |
Packing List:
- LCD display*1
- 500A shunt (with transparent bracket)*1
- 20ft shielded wire*1
- 20AWG 3ft (1M) power cord*1
- Mounting screws*3
- Manual*1
